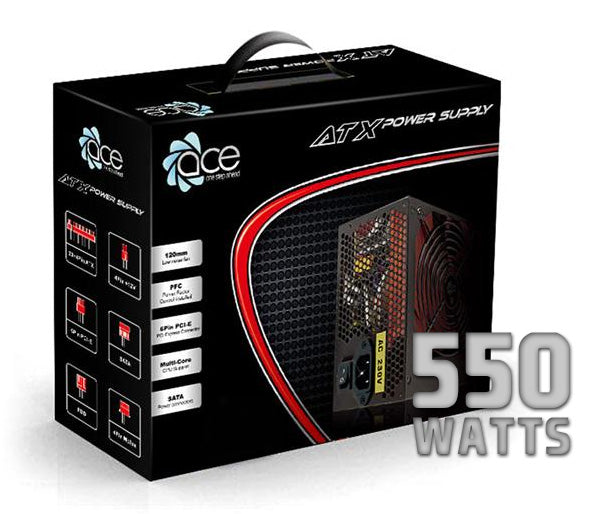

Ace Black 550-BR ATX Power Supply Unit - 120mm Fan - Multi Core CPU - PSU-ACE/550

A power supply unit (PSU) is an essential component of any computing set-up. You need a PSU to be reliable whatever task your PC might be carrying out. Whether you're crunching numbers in a single application or pushing your gaming machine to its limits, an Ace PSU can comfortably handle your demands. Available in a range of wattage capacities, Ace power supplies look like they mean business. An industrial-looking metal exterior houses the main power components as well as a silent cooling fan to keep things ventilated no matter what you're working on.

Specifications

• Dimensions: 150mm x 85mm x 140mm (W x H x D)
• Input Voltage: 230 VAC
• Input Current: 10A
• Input Frequency Range: 50-60Hz
• PFC: Yes - Power Factor Control
• Power Good Signal: 150-450 ms
• Hold Up Time: 1ms-40ms
• Efficiency: 75%
• MTBF: 100,000 Hours
• Protection: OVP / UVP/ OPP
• Power: 550W
• Operation Temperature: 45°C
• Safety: CE / ROHS
• Cooling: 12cm
• Red Fan Noise: < 17 dBA

General Specifications

• Manufacturer Part Number: A-550BR
• EAN Number: 5055492400031
• Has Mains Plug: No
• Colour: Black

What's In The Box

• PSU Unit (Product) Dimensions (mm): 151mm x 141mm x 85mm (W x H x D)
• Packaging Dimensions (mm): 217mm x 162mm x 102mm (W x H x D)
• Net Weight (KGs): 1.1 KGs
• Gross Weight (KGs): 1.2 KGs

Main Features

• Power Factor Control (PFC) Cooling: 12cm
• Red Fan New Version 1.3 / 2.03 Silent with better ventilation ATX 12V compliant for most CPUs and mainboards
• Input Range : 230Vac, 10A, 50-60Hz
• 2 x SATA Connectors
• 3 x Molex Connectors
• 20+4 Pin Motherboard Connector
