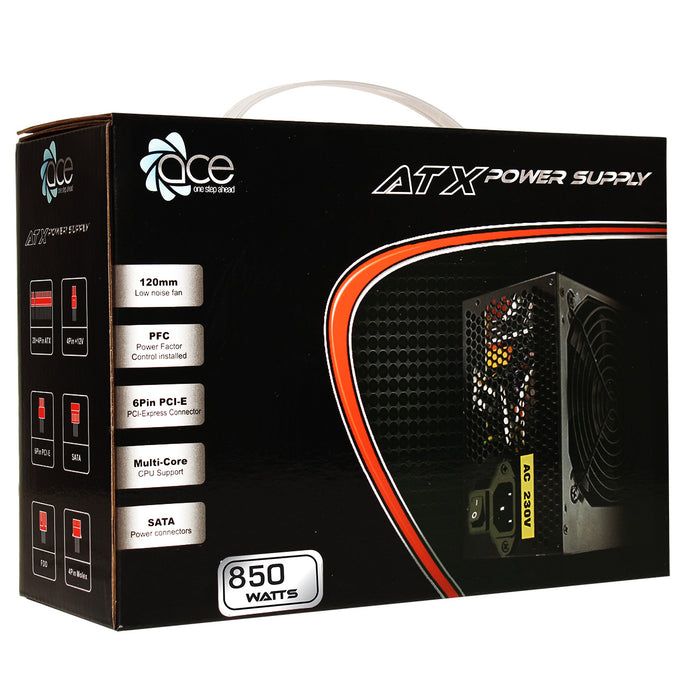

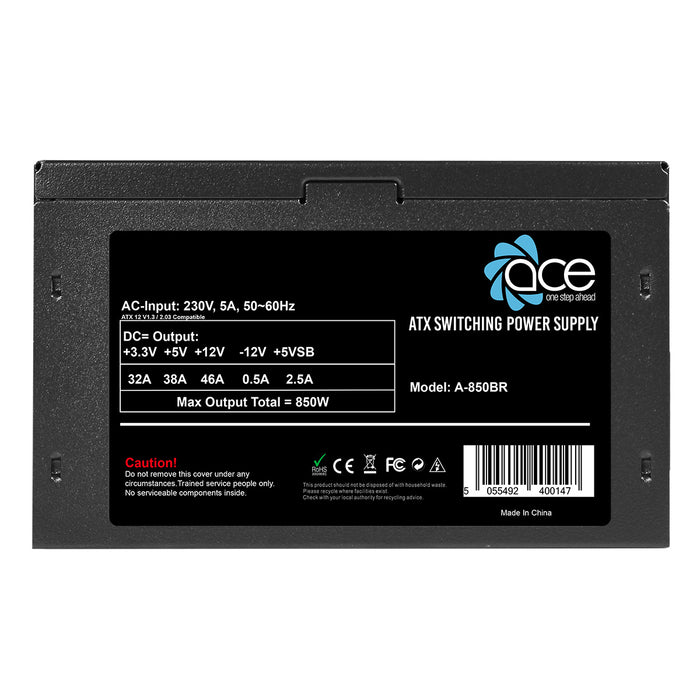

Ace Black 850-BR ATX Power Supply Unit - 120mm Fan - Multi Core CPU - PSU-ACE/850

by Ace
Register & await approval to view prices.
SKU PSU-ACE/850

Ace PSUs are certified RoHS compliant and with power factor control-giving you a safe and stable foundation to build your system from. Ace PSUs come with a superb 12cm fan that offers a quiet operation but with excellent cooling meaning you are working in a more peaceful environment and the right cooling ensures maximum lifespan of your products. Supplied with all the appropriate cables Ace provides maximum compatibility with popular CPU's and mainboards.

Key Features

  • Power Factor Control (PFC)
  • Cooling: 12cm Black Fan
  • New Version 1.3 / 2.03
  • Silent with better ventilation
  • ATX 12V compliant for most CPUs and mainboards

Detailed Specifications

  • Dimensions: 150mm x 85mm x 140mm (W x H x D)
  • Input Voltage: 230 VAC
  • Input Current: 5A
  • Input Frequency Range: 50-60Hz
  • PFC: Yes - Power Factor Control
  • Power Good Signal: 150-450 ms
  • Hold Up Time: 1ms-40ms
  • Efficiency: 75%
  • MTBF: 100,000 Hours
  • Protection: OVP / UVP/OPP
  • Power: 850W
  • Operation Temperature: 45°C
  • Safety: CE/ROHS
  • Cooling: 12cm Black Fan
  • Noise: < 17 dBA

Connectors

  • 20+4 Pin Main Connectors: 1
  • 4+4 Pin 12V Connectors: 1
  • SATA Connectors: 4
  • 4-Pin Molex Connectors: 3
  • 6+2 Pin PCI-e Connectors: 2
  • Floppy Drive Connectors: 1
