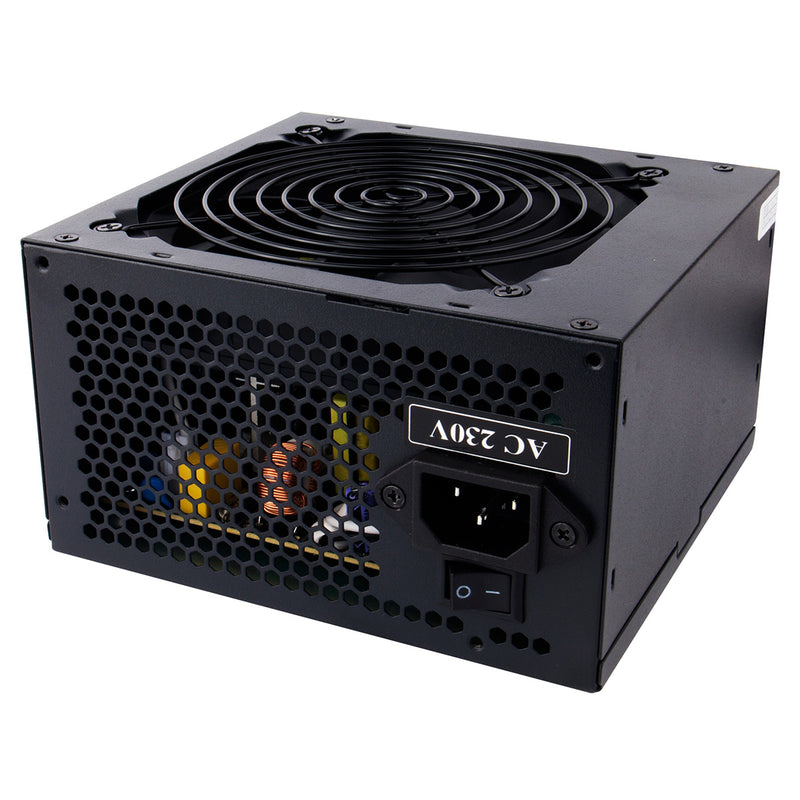

Builder Black Series 500W PSU - 12cm Fan - White Boxed - PSU-500

Builder Black PSUs are certified RoHS compliant and with power factor control-giving you a safe and stable foundation to build your system from. They come with a sleeve bearing 12cm fan that offers a quiet operation but with excellent cooling meaning you are working in a more peaceful environment and the right cooling ensures maximum lifespan of your products. Supplied with all the appropriate cables including 3 SATA providing maximum compatibility with popular CPU's and mainboards.

Key Features

• Support: Compliant with latest Intel standards ATX 12V, V2.0
• Efficiency: > 70%
• MTBF: > 50000hrs
• Cooling System: 120mm sleeve bearing fan
• Protection: Over Voltage Protection (OVP), Under Voltage, Over Power Protection (OPP), Over Temperature Protection (OTP) & Short Circuit Protection (SCP)
• Power Cable Included: Includes a 1.8M Power Cable. Please make sure the power lead is securely fitted into the input socket before turning your PSU on.

Detailed Specifications

• Dimensions: 150mm x 86mm x 142mm (W x H x D)
• Input Voltage: 230 VAC
• Input Current: 5A
• Input Frequency Range: 50-60Hz
• PFC: Passive PFC
• Power Good Signal: 100-500 ms
• Hold Up Time: >17ms
• Efficiency: >70%
• MTBF: 50,000 Hours
• Protection: OVP / OTP / OCP/ OLP/ OPP/ SCP
• Power: 500W
• Operation Temperature: 0-40°C (Nominal Input Voltage)
• Safety: CE / FCC / UL / TUV
• Cooling: 12cm Fan
• Noise: < 23 dBA

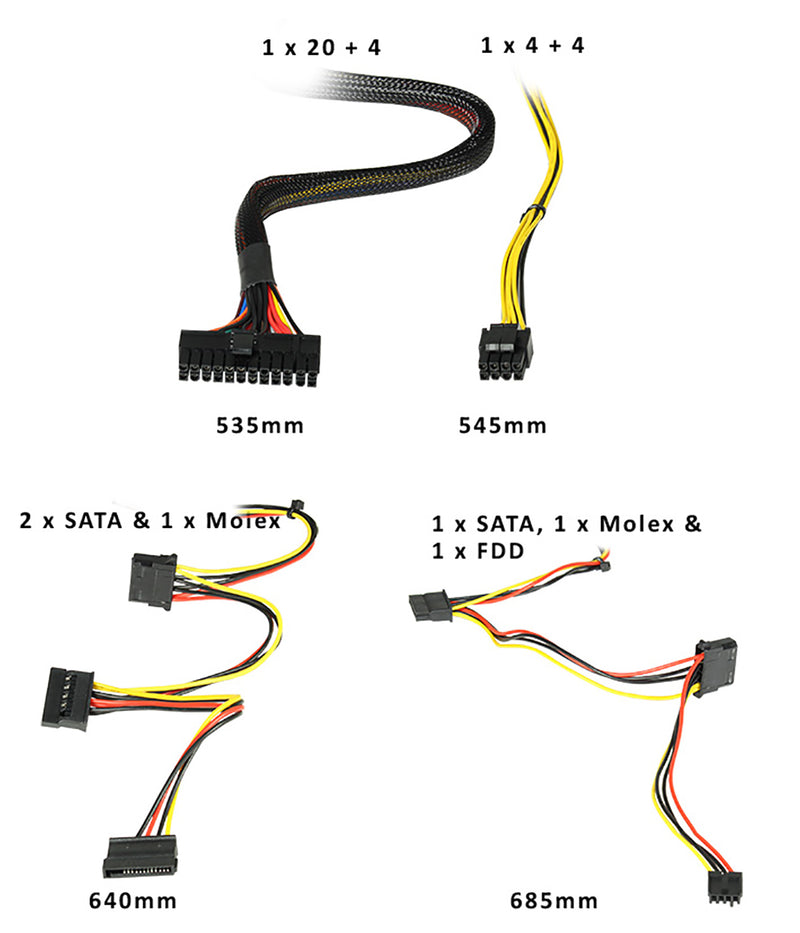

Connectors

• 20+4 Pin Main Connectors: 1
• 4+4 Pin 12V Connectors: 1
• SATA Connectors: 3
• 4-Pin Molex Connectors: 2
• Floppy Drive Connectors: 1
