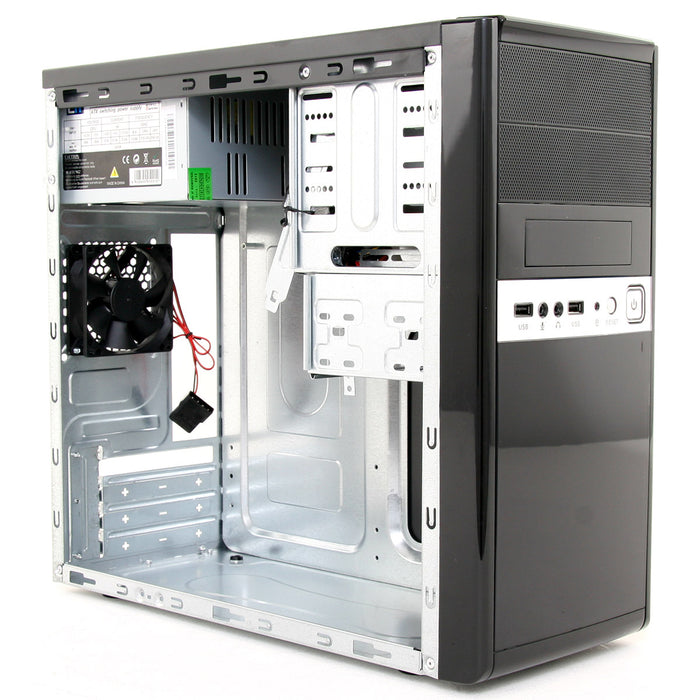

CiT 1016 Gloss Black/Silver Micro ATX Case With 500W PSU - CSE-1016

by CIT
Register & await approval to view prices.
SKU CSE-1016

Key Features

  • Stylish case design
  • Front USB 2.0 ports (x 2)
  • Front HD Audio & Microphone port



Specifications

PSU Rail Output (max.):

  • +3.3V: 28A
  • +5V: 30A
  • +12V: 14A
  • +12V2: 13A
  • -12V: 3A
  • +5VSB: 5A

PSU Connectors & Qty:

  • 20 + 4pin ATX Mainboard: 1
  • 4pin +12V CPU: 1
  • SATA: 2
  • 4pin Molex: 2
  • FDD: 1



Case Specifications

  • Form Factor: Micro ATX
  • Motherboard Support: Micro ATX, Mini ITX
  • PSU Support: Standard ATX
  • PSU Location: Top
  • Gaming Case: No
  • Water Cooling: Not Water Cooling Ready
  • Body Material: 0.5mm SGCC
  • Front Bezel Material: Aluminium & Plastic
  • Side Panel: Vented
  • External Bays: 2 x 5.25” External, 1 x 3.5” External
  • Internal Bays: 2 x 3.5” Internal, 1 x 2.5” Internal



Drive Bay Notes:

  • Expansion Slots: 4 x Full Size
  • Cooling Front: Space for 1 x 80 / 92mm fan
  • Cooling Top: None
  • Cooling Rear: Space for 1 x 80 / 92mm fan (80mm inc.)
  • Cooling Side: Vent
  • Cooling Bottom: None
  • IO Ports: 2 x USB 2.0, 1 x HD Audio, 1 x Microphone
  • GPU Max Length: 350mm
  • CPU Cooler Maximum Height: 145mm
  • Front Bezel Colour: Black / Silver
  • Body Colour: Black



System Cabinet Features:

  • PSU Included: Yes
